Block Clamp

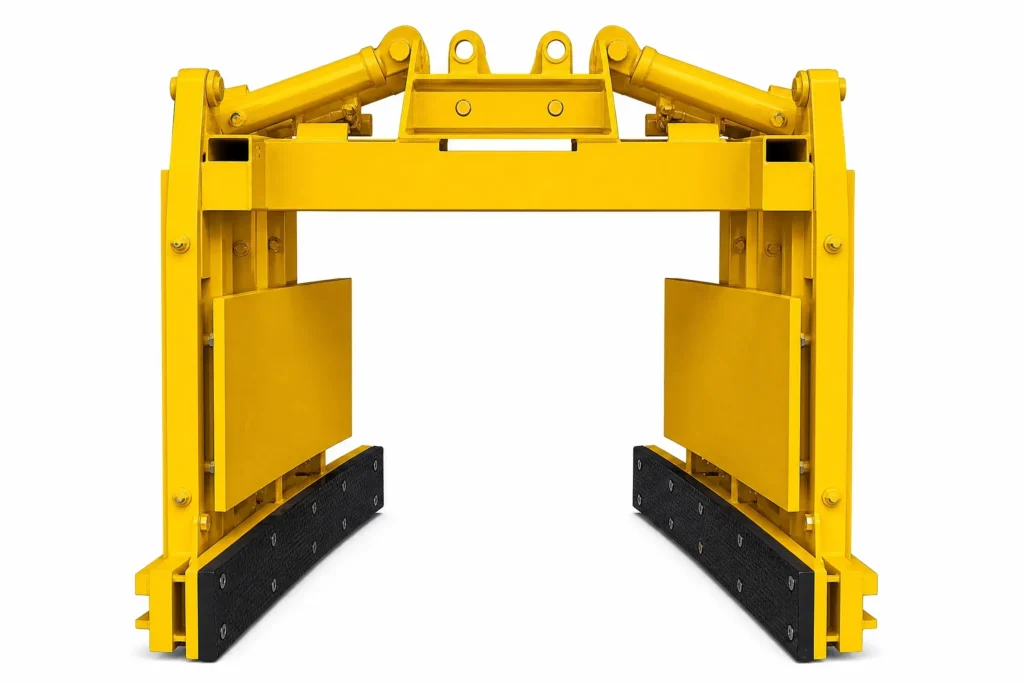

High-Capacity Side Shifting Brick Clamps

SKU H-High-Capacity Side Shifting Brick Clamps

Integrated Precision Alignment: Features a high-force parallel clamping mechanism combined with a built-in lateral sideshifting function, allowing operators to position dense block assemblies with extreme accuracy inside transport trailers or tight construction zones.
Built for Abrasive Environments: Constructed from high-tensile structural carbon steel to withstand the rigorous, abrasive conditions typical of brick yards, concrete casting facilities, and high-demand construction staging sites.
Operational Efficiency: Maximizes warehouse and trailer storage density by enabling gap-free stacking, significantly accelerating vehicle turnaround times in fast-paced building supply logistics.

Product Overview

Our High-Capacity Side Shifting Brick Clamps are professional-grade hydraulic material handling attachments engineered to lift, transport, and cube block-stacked building materials without the use of pallets. Designed to withstand the intense, abrasive demands of brick yards, concrete casting facilities, and construction staging sites, this attachment allows forklift operators to safely side-clamp heavy stacks of clay bricks, concrete blocks, interlocking pavers, and stone curbs directly from the yard floor to delivery trucks.

Manufactured from high-tensile structural carbon steel, the attachment integrates high-force parallel clamping arms with a built-in lateral sideshifting mechanism. This combination enables operators to pinch dense, multi-tier block assemblies securely and slide the entire load sideways for precise, gap-free placement inside transport trailers or tight scaffolding lines, maximizing storage space and accelerating truck turnaround times.

Key Features

✔ Integrated Lateral Side Shifting: Features an independent horizontal shifting axis that provides smooth sideways adjustments for rapid, exact load positioning without repositioning the forklift.
✔ High-Force Parallel Clamping: Driven by synchronized, double-acting hydraulic cylinders to ensure equalized arm movement and balanced gripping pressure across the brick stack.
✔ Heavy-Duty Polyurethane Contact Pads: Equipped with thick, wear-resistant polyurethane or specialized vulcanized rubber gripping strips that conform to surface irregularities and prevent individual bricks from slipping out.
✔ Reinforced Sliding Track Matrix: Built with a heavy steel perimeter frame and hardened horizontal guide rails engineered to resist continuous dust abrasion and high structural torque.
✔ Standard ITA/ISO Hook-On Mounting: Fully engineered to integrate onto standard Class 2A and Class 3A forklift carriages, minimizing installation downtime and retrofitting complexities.
✔ Forged Top Hook Positioning: Designed with high-strength upper locking hooks and heavy-duty lower bolt-on keeper plates that clamp the unit rigidly onto the forklift’s carriage rail to eliminate play.
✔ Severe-Duty Protective Armor: Coated with a thick, oven-cured industrial powder finish that protects structural steel components against outdoor moisture, grit scratching, and heavy material impacts.

Technical Specifications

Specification	Details
Product Type	Hydraulic Side Shifting Brick Clamp Attachment
Mounting Configuration	Standard ITA/ISO Class 2A and Class 3A Carriage Hook-On
Clamping Mechanism	Synchronized parallel arms driven by double-acting hydraulic cylinders
Sideshifting Function	Integrated independent horizontal lateral shifting axis
Contact Pads	Interchangeable bolt-on heavy-duty polyurethane / vulcanized rubber strips
Chassis Material	High-tensile structural carbon steel with reinforced frame matrix
Hydraulic Requirements	4-function valve system (two separate auxiliary line functions required)
Surface Armor	Shot-blast profiling with thick oven-cured industrial powder coating finish

Product Advantages

Radical Cost Savings via Palletless Logistics

In the construction and building material industries, the ongoing purchasing, sorting, and disposal costs of wooden pallets represent a massive financial drain. Our hydraulic brick clamp completely eliminates the need for pallets, allowing the forklift to pinch, lift, and transport interlocking block cubes directly. This capability maximizes transport trailer loading density and streamlines storage layout efficiency.

Multi-Tier Grip Stability & Anti-Slip Engineering

Handling thousands of individual, heavy concrete blocks simultaneously without a rigid base platform demands precise engineering. This attachment features specialized, high-durability polyurethane contact pads paired with an advanced hydraulic valve circuit that regulates holding torque. The flexible pad surface mechanically locks against the rough textures of the brick sides, ensuring that middle and lower rows remain securely suspended during rough yard transit.

High-Visibility Structural Configuration

Driver line-of-sight is critical when positioning heavy clamps around tightly aligned brick rows or loading elevated delivery trucks. The attachment bypasses bulky structural centerpieces, utilizing an open-center throat layout. This provides the forklift operator with a direct forward view of the contact pad edges and arm tips, significantly reducing accidental brick breakage or structural damage.

Built for Severely Abrasive Exterior Environments

Concrete dust, brick grit, and shifting weather conditions quickly destroy standard industrial machinery. Our brick clamps are engineered with hardened, chrome-plated guide shafts, enclosed hydraulic cylinder rods, and heavy-duty slide bushings that repel abrasive particles, preventing track binding and delivering long internal seal lifespans in high-cycle outdoor yards.

Manufacturing Process

Our Brick Clamps are manufactured using precise automated procedures to guarantee rigid structural tolerances and outdoor field reliability:

· CNC Plate & Profile Laser Machining: Heavy structural plates, sliding guide bars, and arm profiles are cut using computerized automated CNC lasers to ensure true square lines and tight dimensional tolerances.

· Robotic Multi-Pass Deep Welding: High-stress joints, framework corners, and upper mounting hooks are joined using automated welding robots for complete penetration and smooth bead consistency.

· Computerized Bore & Shaft Alignment: Post-welding, all cylinder mounts and primary guide rod rails undergo strict secondary computerized boring to prevent binding and minimize friction.

· Dual-Stage Hydraulic Load Testing: The clamping and sideshifting hydraulic assemblies undergo rigid pressure holding inspections up to standard systems to verify seal integrity and synchronize piston stroke speed.

· Shot-Blast Surface Profiling: The entire steel chassis is thoroughly shot-blasted to strip all mill scale and prepare the metal profile for a high-adhesion industrial protective powder coating.

Compatible Forklift Brands

Our standard hydraulic side shifting brick clamps fully comply with global standard ITA/ISO carriage hook-on patterns, offering immediate compatibility with:

· Toyota
· Linde
· Hyster
· Yale
· Mitsubishi
· Komatsu
· Nissan
· Jungheinrich
· Caterpillar
· HELI / Hangcha

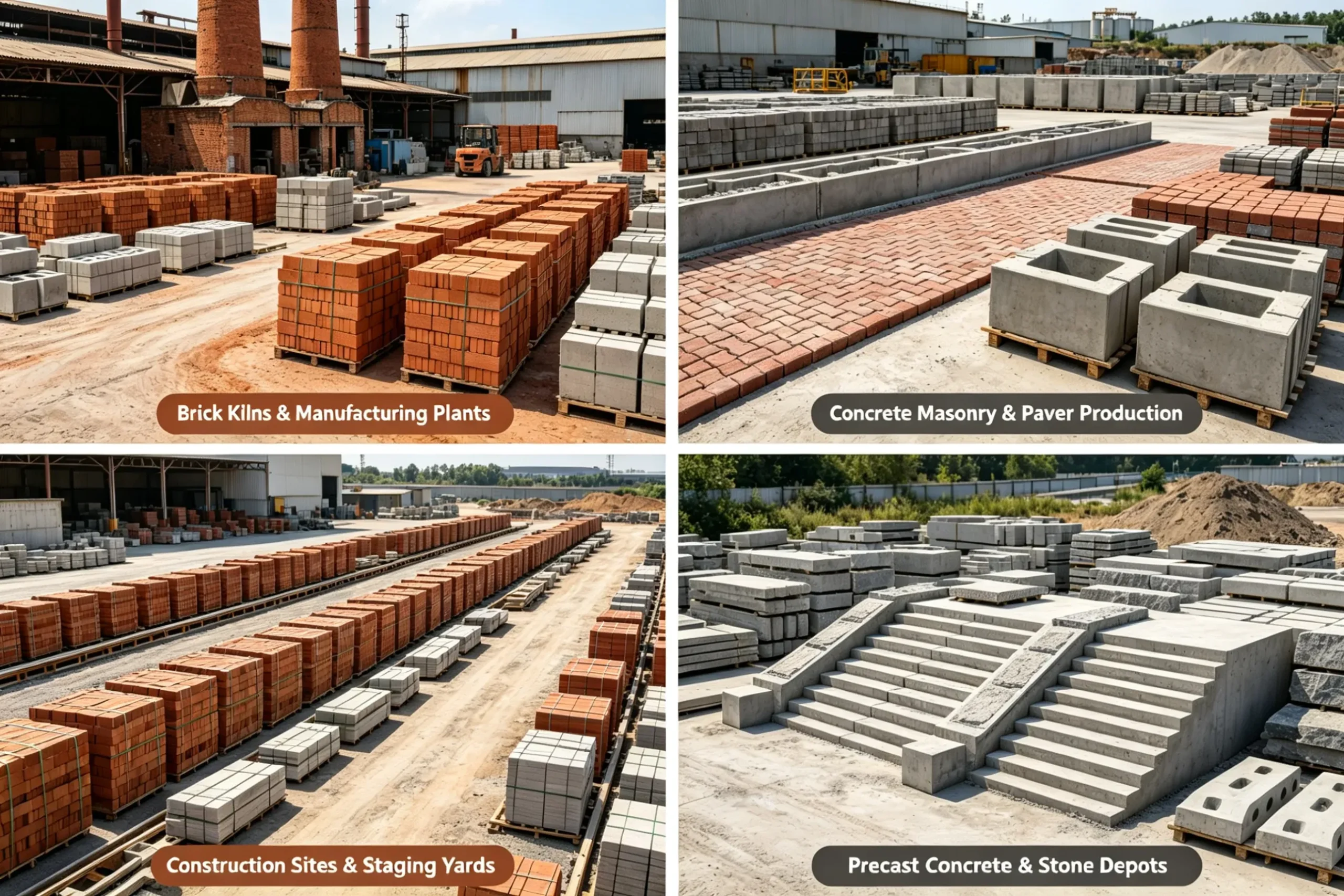

Applications

Our heavy-duty hydraulic parallel clamping attachments provide rugged material handling and dependable load security across specialized commercial sectors:

· Brick Kilns & Manufacturing Plants: Continuous, high-frequency moving, sorting, and deep-stacking of freshly baked clay brick cubes and curing concrete blocks.

· Concrete Masonry & Paver Production: Efficient transport and storage staging of interlocking driveway pavers, retaining wall components, and heavy structural blocks.

· Construction Sites & Staging Yards: Direct unloading of transport vehicles and precise placement of bundled building materials along high-density masonry lines.

· Precast Concrete & Stone Depots: Reliable, palletless handling of heavy precast concrete steps, decorative stone slabs, and highway curb segments.

Why Choose Our Brick Clamps?

✔ Consistent production capacity optimized for global industrial distribution networks
✔ Standard industrial designs matching ITA Class 2A and Class 3A carriage setups
✔ Comprehensive quality control covering independent cylinder pressure, arm alignment, and weld diagnostics
✔ Export-safe packaging and transit securing for damage-free overseas delivery
✔ Durable, low-maintenance performance across high-frequency material tipping operations

FAQ

Q
Does this side shifting brick clamp require additional hydraulic control lines on my forklift?

Yes. Because this attachment combines two independent operations (clamping and sideshifting), it generally requires a 4-function hydraulic valve system (两 separate auxiliary lines) with corresponding control levers in the cabin. The forklift hoses connect directly to the standard threaded ports on the multi-cylinder manifold block to control both axes smoothly.

Q
What maintenance is required for handling brick dust and aggregate grit?

To ensure long-term smooth operation and minimize track wear, the horizontal sliding guide rails should be wiped down or pressure-washed regularly to remove built-up brick dust and aggregate grit. Applying a fresh layer of common industrial lithium-based grease during standard weekly fleet inspections will keep the arms sliding freely and lower friction.

Q
Can the polyurethane contact pad strips be replaced when they wear down?

Yes, absolutely. The high-friction polyurethane or rubber gripping strips are designed as high-wear components and feature an easy-to-access, interchangeable bolt-on layout. When the outer surface texture becomes smooth or cut by sharp concrete edges after extended high-frequency use, they can be quickly replaced with fresh sets, eliminating the need to replace or modify the structural steel arm assembly.

Q
Can you custom-manufacture clamps for specialized oversized block cubes or unique layouts?

Yes. As an experienced direct-to-market industrial manufacturer, we offer full OEM and engineering customization. We can custom-fabricate wider frames to handle extra-long block matrices, provide extended arm height dimensions for tall, multi-tier cubes, or adapt mounting hooks for non-standard forklift carriages.
